Manually Processing Comet Images

Posted on December 28, 2020 by Benoit Guertin

Looking back, the “Great comet of 2020″ C/2020 F3 NEOWISE was a fantastic sight and well worth the 3am alarm to snap some photos back in July. But comet images are notoriously difficult to work with. Should I also add that in older times, comets were often seen as a bad omen, the bearer of bad news? Cough, cough COVID-19 cough…

Anyways, back to astronomy… There are essentially two types of photo registration (alignment) software out there: 1) Deep Sky which uses pin-point stars to perform alignment; 2) Lunar/Planetary uses the large “disk” of a planet or Moon to align based on surface details.

So when you capture long wispy comets like the RAW image below, software like DSS or Registax just can’t cope.

RAW image : Canon 80D 300mm f/5.6 5 seconds exposure at ISO3200 (09-jul-2020)

I turned to standard photo-editing software for a manual alignment and stacking. This is essentially opening one “base” image and then adding a 2nd image as a new layer. I change that 2nd layer to be overlaid as a “Difference” and manually align this 2nd layer to match the base layer. Once that is done I change the layer mode to Addition, and then hide this 2nd layer. Repeat the steps for a 3rd, 4th, 5th, etc. layers until you’ve added all your images. Always aligning with the “base” image to ensure no drift.

If you simply add all those layers up, you will get one very bright image because you are adding pixel intensities. You can do that and then work with the Levels and Curves to bring it back down, or if like me, working with GIMP, then use the Py-Astro plug-ins to do the merging and intensity scaling in a single step with a Merge all layers. Py-Astro can be downloaded here. I haven’t explored all that the plugins have to offer, that will hopefully be in another blog.

Stacking 11 individual frames results in an improvement over a single RAW image (image below). With the stacked image, I’m able to work with the intensities to darken the sky while keeping the comet tail bright.

After merging 11 images manually aligned in GIMP

However the sky gradient is pretty bad, due to the camera lens and because at 4am the sun is starting to shine on the horizon. So off to IRIS to correct the background gradient. From GIMP I save the files as a 16BIT FIT that I can use in IRIS. For steps on how to do this, see my blog about how to remove the sky gradient.

After a quick spin in IRIS, I’m back in GIMP for final color and intensity adjustments, I boosted the BLUE layer and adjusted the dark levels for a darker sky.

C/2020 F3 NEOWISE from 09-JUL-2020 by Benoit Guertin — Final Processed image of C/2020 F3 NEOWISE from 09-JUL-2020

Nucleus of Comet C/2020 F3 NEOWISE

Posted on August 29, 2020 by Benoit Guertin

When observing a comet, what we see is the outer coma; the dust and vapor outgassing from the nucleus as it gets heated from the Sun.

So I decided to take one of my photos taken with my Skywatcher 80ED telescope (600mm focal length) and see if I could process the image to spot where the nucleus is located.

This can be achieved by using the MODULO command in IRIS and viewing the result in false color. The results are better if you do a logarithmic stretch of the image before the MODULO command. It took some trial-and-error to get the right parameters, but the end results isn’t so bad.

Studying the internal structure of comet C/2020 F3 NEOWISE (Benoit Guertin)

For the fun of it I tried to see if I could calculate the size of the comet nucleus using the image. At the most narrow the nucleus on the photo spans 5 pixels. Based on a previous plate-solve result I know that my setup (Canon 80D and Skywatcher 80ED telescope) results in scale of 1.278 pixels per arc-second. Then I used Stellarium to get the Earth-coment distance on July 23rd (103.278 M km)

When I plugged in all the numbers I get a comet nucleus size of approximately 2000 km, which to me seamed a little on the BIG size.

Sure enough a little research revealed that measurements made by Hubble points to a 4.8 km ball of ice. So yeah, I’m quite far from that… but it was fun to give it a try.

C/2020 F3 (NEOWISE) Thanks for Swinging By

Posted on August 28, 2020 by Benoit Guertin

I live in a heavily light polluted city, therefore unless it’s bright, I won’t see it. But boy was I ever happy with the outcome of this comet! In my books C/2020 F3 (NEOWISE) falls in the “Great Comet” category, and it’s by far the most photographed comet in history because it was visible for so long to folks on both sides of the globe.

My last encounter with a bright comet was in 2007 with periodic 17P/Holmes when it brightened by a factor half a million in 42 hours with this spectacular outburst to become visible to the naked eye. It was the largest outburst ever observed with the corona becoming temporarily the biggest visible object in the solar system. Even bigger than the Sun!.

Comet 17P/Holmes November 2, 2007 (Benoit Guertin)

So when the community was feverishly sharing pictures of the “NEOWISE” I had to try my luck; I wasn’t about to miss out on this chance of a lifetime.

I have to say that my first attempt was a complete failure. Reading up when it was the best time to try to photograph this comet most indicated one hour before sunrise was the right time. So I checked on Google Maps where I could setup for an un-obstructed view of the eastern horizon (my house was no good) and in the early morning with my gear ready at 4am I set off. To my disappointment and the “get-back-to-bed-you-idiot” voice in me, it didn’t work out. By the time I got to the spot and had the camera ready, the sky was already too bright. No comet in sight, and try as I might with the DSRL, nothing.

Two evenings later and another cloudless overnight sky I decided to try again, but this time I would make it happen by setting the alarm one hour earlier: 3am. That is all that it took! I was able to set-up before the sky could brighten, and then CLICK! I had this great comet recorded on my Canon SD memory card.

Comet C/2020 F3 (NEOWISE) in the dawn sky on July 9th. (Benoit Guertin)

I didn’t need any specialized gear. All it took was a DSLR, a lens set to manual focus, a tripod and 5 seconds of exposure and there was the comet. I snapped a bunch of frames at different settings and then headed back home to catch the last hour of sleep before starting another day of work. Lying in bed I felt like I had accomplished something important.

As the comet swung around our Sun and flipped from a dawn to a dusk object I decided I should try to photograph it once again, but this time with the Skywatcher 80ED telescope. At that point, the comet was dimming so every day that passed would be more difficult. It was only visible in the North-West horizon at sunset, which meant setting up in the front the the house, fully exposed to street lights. Not ideal, but I had nothing to loose trying.

Setup in front of the house, fully exposed to street lights to catch the comet.

I used our tree in the front yard to act as a screen and was able to locate and photograph this great comet. Polar alignment wasn’t easy, and when I had the comet finally centered and focused with the camera, overhead power lines were in the field of view. I decided to wait out 30 minutes and let the sky rotate to the lines out of the view. Besides, it will get darker anyways which should help which the photo. But I also realized that my “window” of opportunity was small before houses would start obscuring the view as the comet would dip to a lower angle with the horizon.

C/2020 F3 (NEOWISE) July 23, 2020 – Skywatcher 80ED (Benoit Guertin)

I’m sure in the years to come people will debate if this was a “Great Comet”, but it my books it’s definitely one to remember. It cemented with me the concept that comets are chucks of “dirty ice” that swing around the sun. Flipping from a dawn to dusk observable object after a pass around the Sun is a great demonstration of the elliptical nature of objects moving in our solar system.

Now waiting for the next one…

The Great Comet of 2020 That Never Was

Posted on April 19, 2020 by Benoit Guertin

Back in March, the astronomy crowd was buzzing about a possible”naked-eye” comet expected in late May 2020. Comet C/2019 Y4 (ATLAS) was first detected at the tail end of December as a very dim magnitude 19.6 object and by mid-March it had brighten to an easy telescope target magnitude of 8. Those not familiar with the magnitude scale, going from 19.6 to 8 is not a doubling in brightness, but around a 4000 times increase!

That dramatic increase in brightness help fuel the hype for the Great Comet of 2020, and there were two other factors that got people excited:

It would be visible at dusk from the Norther Hemisphere, hence within easy viewing to much of the world population.
It was following a similar orbital path as the “Great Comet of 1843“, suggesting that it was from the same original body and could potentially provide the same viewing spectacle. That 1843 comet was visible in daytime!

Well all that went south when the comet’s breakup was observed in late March after peaking momentarily at magnitude 7. It began to dim, along with any hopes of a Great Comet repeat. Below is a graph showing the the original (grey line) and revised (red) comet brightness forecast (dots being observed measurements) on this chart created by Seiichi Yoshida (comet@aerith.net)

Comet C/2019 Y4 (ATLAS) Brightness – Copyright(C) Seiichi Yoshida

Comet C/2019 Y4 is expected to make its closest approach to the sun on May 31st, however most experts believe it will disappear (disintegrate) before that date. Seeing that I had a small window of opportunity to capture the comet I decided to try my luck last Saturday evening.

Below is an extremely processed (and ugly) image that I got by combining 25 photos (15 seconds each at ISO 3200) using my Skywatcher 80ED scope. The photo just about makes out the distinctive blue-green hue and elongated shape of a comet. It is around magnitude 10, very diffuse and about 147 million km away from us the day this photo was taken.

Comet C/2019 Y4 (ATLAS) on April 18, 2020 – Very faint at about magnitude 10. Imaged with 80ED telescope 25 x 15sec

I pushed the image processing so hard that I was able to pick up faint magnitude 13 galaxies!

On to the next comet!

Telescope: Skywatcher 80ED
Camera: Canon 80D
Image: 25 x 15sec at ISO3200 (6 minutes)

Animation – Movement of Comet 41P

Posted on April 22, 2017 by Benoit Guertin

The word “planet” comes from the Greek work “planan” which means to wander. Early star gazers noticed that some bright stars moved with respect to other fixed stars. Those bright stars are our closest planets: Mercury, Venus, Mars, Jupiter and Saturn. Comets also move a fair bit across the sky, but the origin of the word has more to do about stars “with long hair” than it’s traveling behavior.

Last weekend I managed to photograph comet 41P//Tuttle–Giacobini–Kresák, and I identified in my blog that it’s movement was visible frame to frame. Well I’ve finally gotten around to create a small animation of that movement. For those wondering what’s the comet’s velocity, it’s currently travelling at 37.4 km/s.

Animation of comet 41P/Tuttle–Giacobini–Kresák (45 minutes)

Animation of comet 41P/Tuttle–Giacobini–Kresák (41 minutes)

The above is composed of 32 frames, each a 1 minute exposure spanning a time of 41 minutes. You are probably thinking “it should be 32 minutes, not 41!”. That is because I have a delay between each frame to allow the camera to send the photo to the computer. Hence between the first and last frame, 41 minutes have elapsed.

Comet 41P/Tuttle-Giacobini-Kresak

Posted on April 16, 2017 by Benoit Guertin

Periodic comet 41P/Tuttle-Giacobini-Kresak is currently a magnitude 8 object for telescopes and unlike many other current bright comets like C/2015 ER61 (PANSTARRS) and C/2017 E4 (Lovejoy) it is visible for a good portion of the night while the other two are only visible in the morning twilight for those like me in the northern hemisphere.

On April 13th comet 41P was in the constellation Drago, which is where I managed to photograph it.

Comet 41P/Tuttle-Giacobini-Kresak (13-Apr-2017) – Benoit Guertin

Not much of a tail on this comet, and I’ve checked other photos taken with larger scopes and the result is also just a coma around the nucleus.

Because it is passing near Earth, its movement in the sky is quite noticeable frame-to-frame in the captured images. For the registration and stacking with comets, this is done by alignment on the comet and not the stars, hence the star trails in the above image. I performed another stacking, this time using the stars to align, and the comet’s movement becomes obvious. The displacement measures 2.6 arc-minutes in the 41 minutes that elapsed between first to last exposure.

UPDATE: Created a short video showing the comet’s movement

Distance traveled by the comet in 41 minutes

My setup was less than ideal, as the constellation was only visible from the front of my house. Yes that is a lovely street-light shining right across the street. Luckily the telescope was pointing a little to the right, and a rolled piece of cardboard help act as an dew-shield extension to block the glare. But on the good side I had a nice solid concrete surface and got a very good polar alignment with 1 minutes exposures giving me nice round stars. Hmmm, might explore this setup a little more often…

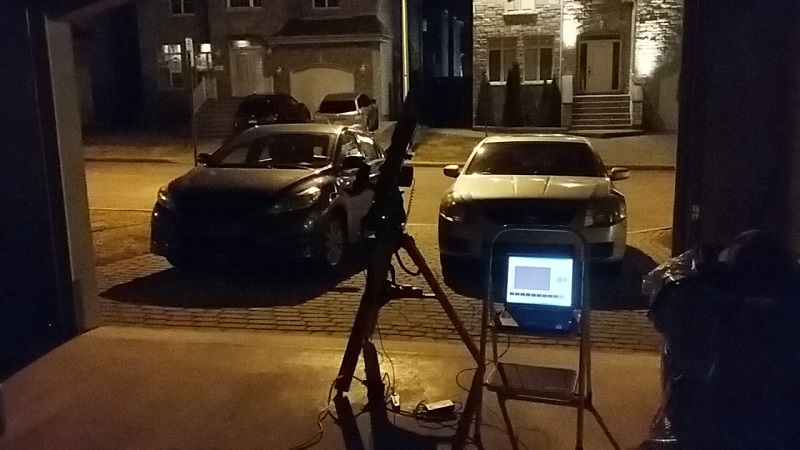

Setup in the garage to image comet in constellation Drago

Telescope: SW80ED
Camera: Canon XTi (450D)
Exposure: 32 x 60sec ISO 800
DeepSkyStacker, IRIS, GIMP

Other comets of interest for 2017

Fast Moving Comet Before Sunrise

Posted on February 9, 2017 by Benoit Guertin

If you are able to get out of bed early and the sky is clear, equipped with binoculars you should be able to catch a fast-moving comet as it swings by Earth at about 32 lunar distances over the next few days. The best time is just prior to sunrise as the comet will be higher in the sky in the East. Use Jupiter as well as bright stars Vega and Arcturus to get your bearings. With each day the comet will rise earlier and will appear higher in the sky as the chart below shows; comet position at 5am for the next week. However it will diminish in brightness as it moves away from Earth on after February 11th.

Comet 45P over the next few days starting Feb 10th.

This isn’t the closest a recording of a comet passing near Earth, but it does make it to the 8th spot since modern observation and have been keeping track of near Earth objects (1950). Back in August 15 2011, it happen to pass even closer, only 23 lunar distances, making it also the 5th closest comet approach.

With a storm system moving up the eastern edge US and Canada, my chances of getting any clear morning sky is pretty slim…

Downloadable PDF Sky Chart: 45p_feb2017_chart

Comet 45P/Honda-Mrkos-Pajdusakova

Posted on January 6, 2017 by Benoit Guertin

It wasn’t easy but on Friday the weather cooperated and I was able to capture a glimpse of comet 45P/Honda-Mrkos-Pajdusakova. That’s if you consider -10°C outside temperature to set-up a telescope and operate a laptop cooperation from Mother Nature.

In my previous post I gave myself a 2-day challenge to capture this comet as it was essentially the last few days at a decent magnitude 7 brightness before becoming non-observable as it swings around the sun over the coming weeks. And when it returns to the northern latitude sky in mid-to-late February it will be dimer at magnitude 10. In the image below, I labeled some of the brighter stars with their visual magnitude as reported by the Tycho-2 catalog.

Comet 45P/Honda-Mrkos-Pajdusakova – around magnitude 7 on January 6th, 2017

I had a very small window of about 30 minutes to make any observation and photograph it. The challenge started with setting up without polar alignment; the sky was still too bright to locate Polaris, and instead relied on the position of Venus to align the mount. As it was still twilight, I was limited to short exposures to keep the histogram on the left half on the camera and to make out a star from the background sky. I actually started at ISO 400 with only 1 second exposure while adjusting the focus around Theta Cap (magnitude 4). And as the minutes ticked by I was able to slowly increase my exposure as the twilight darkness permitted. With neighboring trees, and rooftops coming into view I had to grab as many frames as possible. In the end I got 14 images with 6 seconds exposure at ISO 800 before calling it quits.

With such short exposures no chance of capturing any comet tail, but the green halo is unmistakable comet.

I hope to capture a few more comets this year.

Skywatcher 80ED
Canon XTi (450D)
14 x 6sec (ISO 800)
Registered and stacked with DeepSkyStacker. Post-processing with GIMP.

Challenge for the next 2 days: Comet

Posted on January 4, 2017 by Benoit Guertin

My challenge for the next two days (Clear Sky Chart is predicting clear skies) is to observe and capture comet 45P/Honda-Mrkos-Pajdusakova. It should be relatively easy to locate by hopping from Venus then down the bright stars of Capricorn starting with Delta, Gamma, Iota and ending with Theta. Then half a degree to the left of Theta Cap is magnitude 6 star HD201057. Comet 45P at magnitude 7 should be just next to that star.

The challenge will be its position low near the horizon, I may have obstructions before it sets. And the twilight may not be dark enough for a magnitude 7 object. The viewing time window will be quite small…wait for darkness and it will fall out of view.

Location of comet for January 5th 5:30pm EST

No need for telescope, it’s also a binocular object.

45P is the 45th periodic comet (Halley being the 1st identified periodic comet) with a 5.3 year period. Its orbit swings from just past Jupiter to in between Mercury and Venus.

Comets for 2017 [updated 16-APR-2017]

Posted on December 26, 2016 by Benoit Guertin

Below are some of the comets to keep a watch for in 2017 as they should be observable with small scopes and even binoculars.

45P/Honda-Mrkos-Pajdusakova
Currently observable low in the evening at around magnitude 8 and will continue to brighten to magnitude 7 in January and then fade rapidly, including a approach to within 0.08AU of Earth on February 11th, as well as passing within a few degrees of globular cluster M3 shortly after.
Photo from January 6th.

C/2016 U1 ( NEOWISE )
Currently observable at magnitude 9 and predicted to brighten to magnitude 7 in mid January. Discovered on October 21, 2016. Not visible in the southern hemisphere.

C/2015 V2 ( Johnson )
Faint at magnitude 12, and will continue to brighten until mid 2017, with good chances of observation.

C/2015 ER61 ( PanSTARRS )
Should brighten to magnitude 7 spring of 2017, unfortunately not very visible to the northern latitudes. However it will cross many NGC and Messier objects throughout the first half of the year.

2P/Encke
Expected to brighten to magnitude 6-7 around at the start of March, overall visible for about 45 days. For those in the northern hemisphere, best observations will be the end of February.

41P/Tuttle-Giacobini-Kresak
Expected to brighten to better than magnitude 6 in early April. A good opportunity for wide-field photo as it passes 5° of M92 at the end of April.
Photo from April 13th.

References:
Comet Chasing
Seiichi Yoshida’s Bright Comet Listing (and future listing)
Paper by the British Astronomical Association
